Steel structure is a structure made of steel materials and is one of the main types of building structures. The structure is mainly composed of steel beams, steel columns, steel trusses and other components made of steel sections and steel plates, and adopts rust removal and rust prevention processes such as silanization, pure manganese phosphating, water washing and drying, and galvanizing. The components or parts are usually connected by welds, bolts or rivets. Because of its light weight and simple construction, it is widely used in large factories, venues, super high-rise buildings, bridges and other fields. Steel structures are prone to rust. Generally, steel structures need to be rust-free, galvanized or painted, and maintained regularly.

// Product  Description //

RINGLOCK SCAFFOLDING FEATURES

● Rosette modular scaffolding with smart assembly technique

● Few loose scaffolding parts with unique shape

● Fast scaffold assembly and dismantling

● Optimum use of storage and transport capacity

● High structural stability ; High safety standards

● Indestructible components

● Stable in value

● Full traceability




WHY CHOOSE RINGLOCK SCAFFOLDING?

● The ringlock scaffold offers you a high degree of flexibility and versatility.

● Reduced working time and errors during assembly

● You can not only assemble and dismantle a ringlock scaffold quickly, but also store it in a space-saving way

●  Ringlock scaffold is designed to bear high loads

●  Mixing approvals for even more flexibility

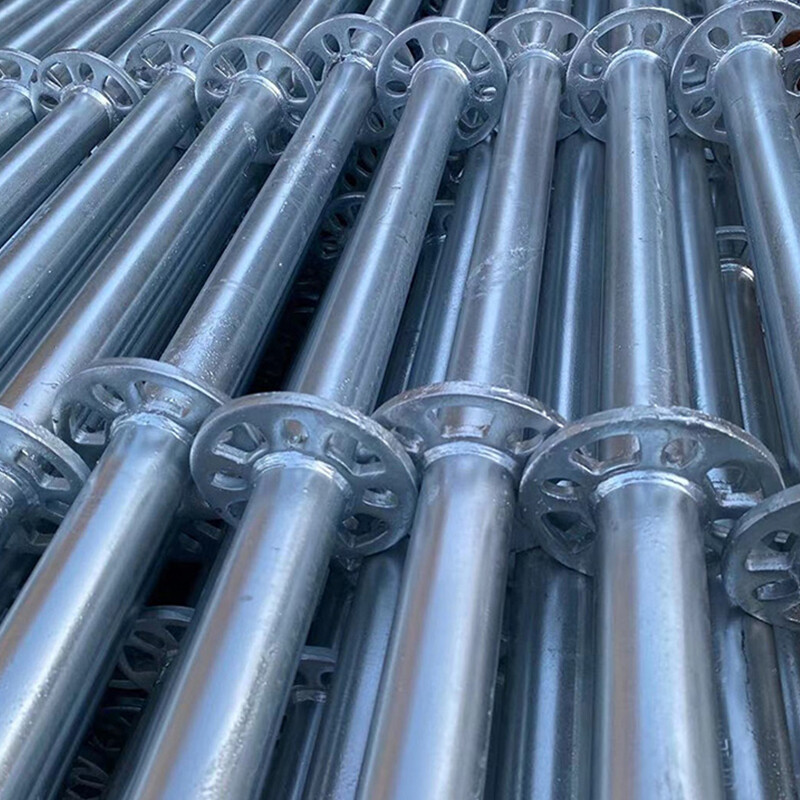

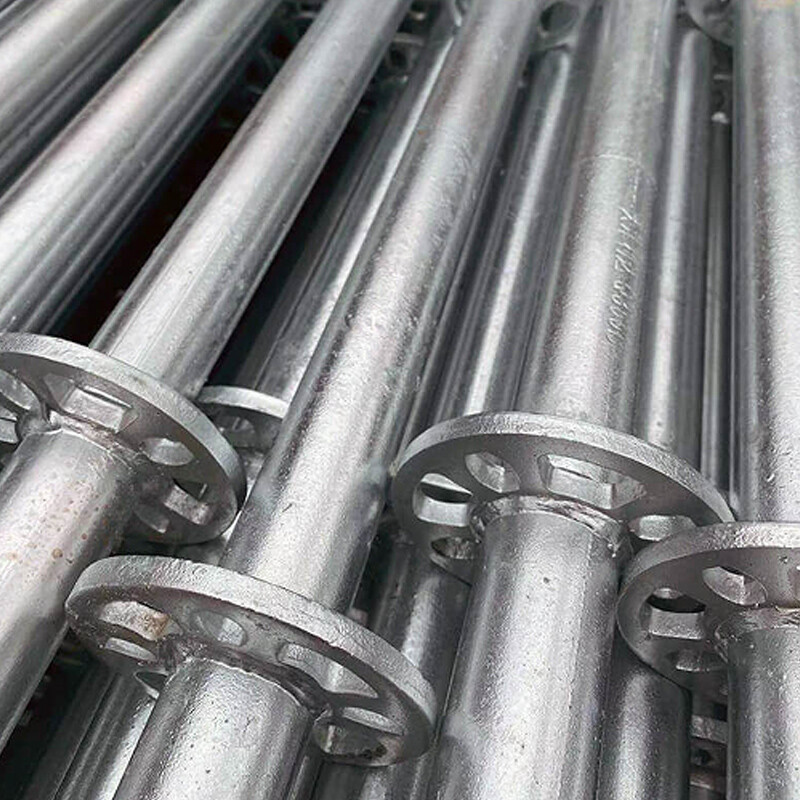

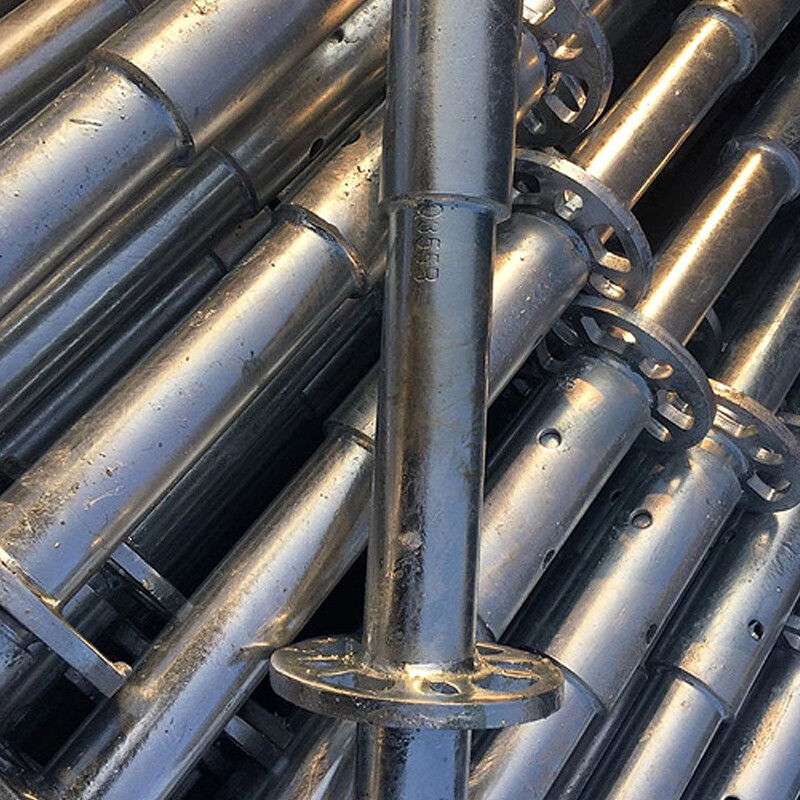

 Standards are the vertical members of Ringlock scaffolding. The standard provides the vertical support for scaffolding. The spigot is permanently fixed in place.

Ringlock Standard
ITEMITEM   CODELENGTH(M)
1   STAR STANDARDYPSD0500.5
2   STAR STANDARDYPSD1001.0
3   STAR STANDARDYPSD1501.5
4   STAR STANDARDYPSD2002.0
5   STAR STANDARDYPSD2502.5
6   STAR STANDARDYPSD3003.0
8   STAR STANDARDYPSD4004.0

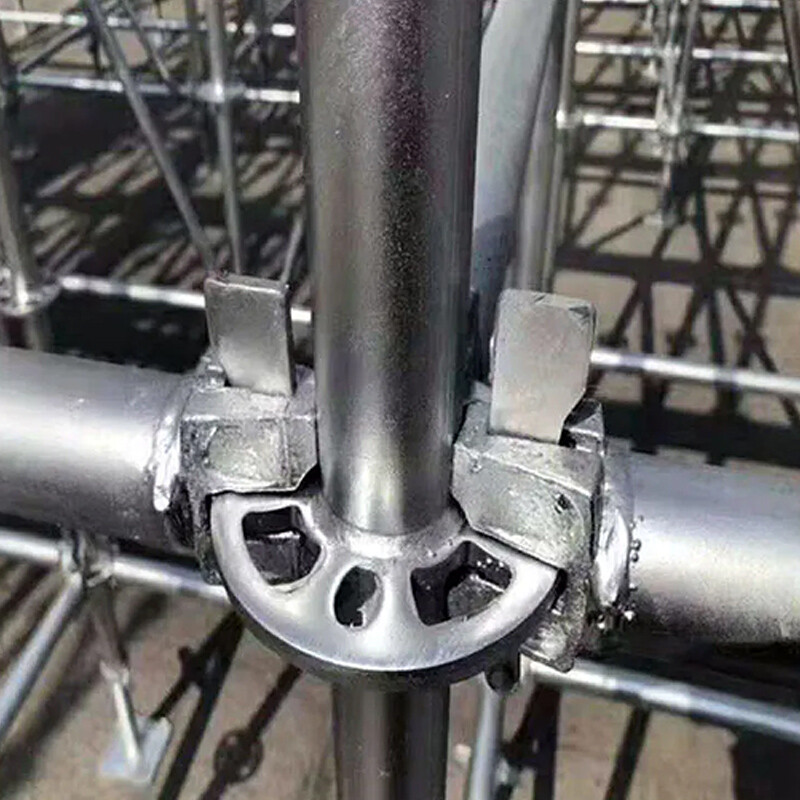

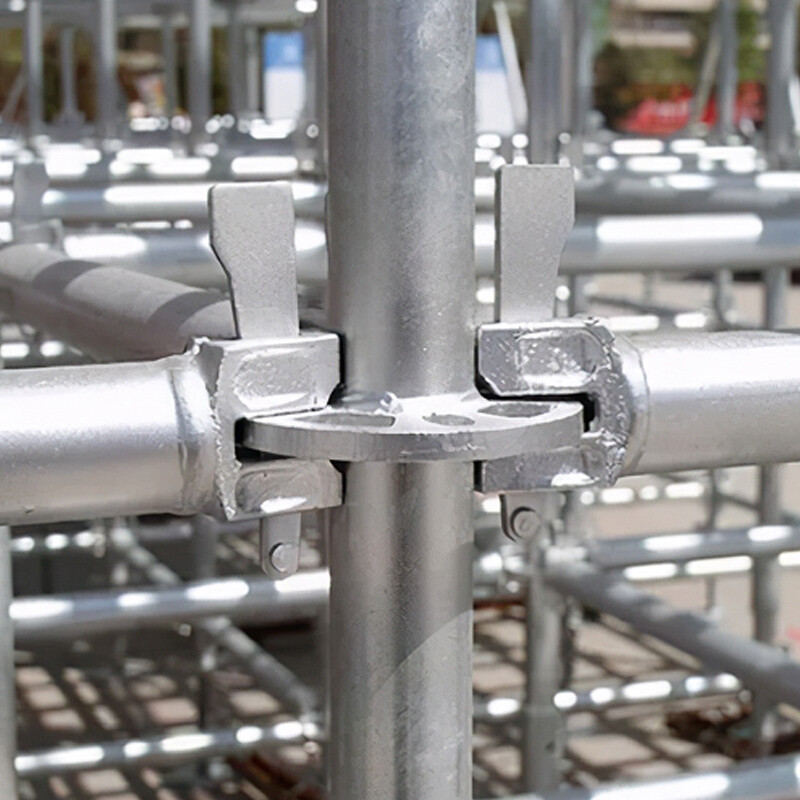

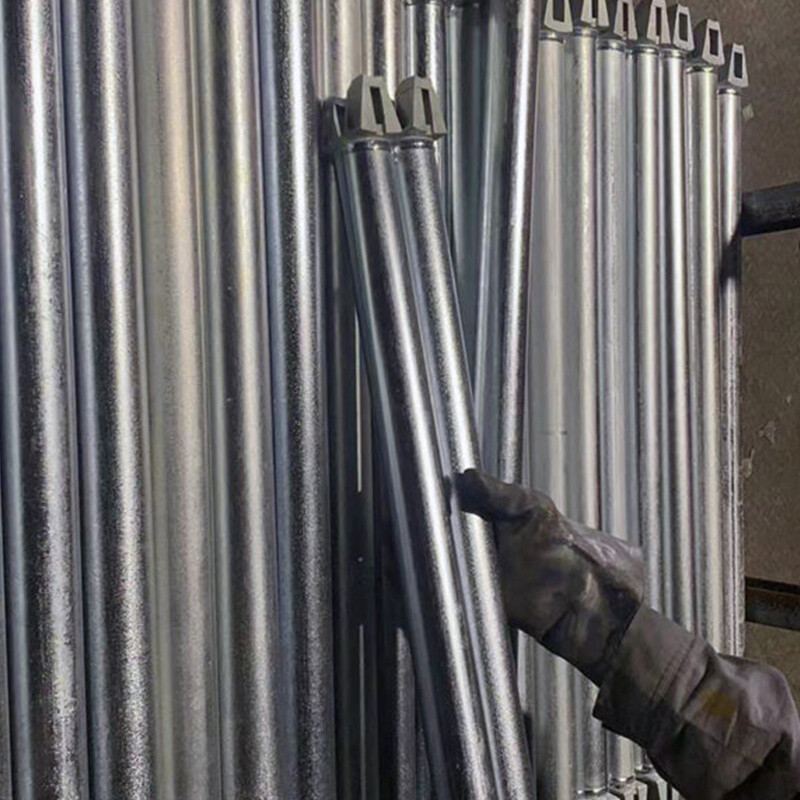

Ledgers & U transoms are the horizontal members of Ringlock scaffolding. They provide horizontal support for loads and planks. Ledgers can also be used as mid rail and top or hand guardrails.

O Ledger
ITEM   CODELENGTH(M)ITEM   CODELENGTH(M)
YPLO0730.73YPLO0300.6
YPLO1091.09YPLO0600.6
YPLO1401.4YPLO0900.9
YPLO1571.57YPLO1201.2
YPLO2072.07YPLO1501.5
YPLO2572.57YPLO1801.8
YPLO3073.07YPLO2002.0
Other size is available
U TRANSOM
ITEMITEM   CODELENGTH(M)
2   PLANKS U TRANSOMYPLU0730.73
3   PLANKS U TRANSOMYPLU1091.09
REINFORCED   TRANSOMYPLU1401.4
REINFORCED   TRANSOMYPLU1571.57
REINFORCED   TRANSOMYPLU2072.07
REINFORCED   TRANSOMYPLU2572.57
REINFORCED   TRANSOMYPLU3073.07
Other size is available


Diagonal Braces are used for the lateral bracing of Ringlock scaffolds. They can also be used as compression and tension members for cantilevers/spurs where they transmit loads back into the main scaffold structure. Diagonal/ Bay Braces are also used for handrails in the Ringlock Steel Stair System.

ITEM   CODELXH(M)ITEM CODELXH(M)ITEM CODELXH(M)ITEM CODELXH(M)
YPDB073200.73X2.0YPDB073150.73X1.5YPDB030200.3X2.0YPDB030150.3X1.5
YPDB109201.09X2.0YPDB109151.09X1.5YPDB060200.6X2.0YPDB060150.6X1.5
YPDB140201.40X2.0YPDB140151.40X1.5YPDB090200.9X2.0YPDB090150.9X1.5
YPDB157201.57X2.0YPDB157151.57X1.5YPDB120201.2X2.0YPDB115151.2X1.5
YPDB207202.07X2.0YPDB207152.07X1.5YPDB150201.5X2.0YPDB150151.5X1.5
YPDB257202.57X2.0YPDB257152.57X1.5YPDB180201.8X2.0YPDB180151.8X1.5
YPDB307203.07X2.0YPDB307153.07X1.5YPDB200202.0X2.0YPDB150152.0X1.5
Other size is available


Steel Deck are laid side by side to form the working platform. They span the length of the bay and hook onto the suppor ting Ledger/Transom. There is an antilock system to prevent uplift in adverse conditions.

Option   A-Heavy Duty PlankOption   B-Light & Medium Duty Plank
WXL(M)WXL(M)Width(MM)Length   (MM)
"O"   hook"U"   hook230600
0.32X0.730.32X0.73240900
0.32X1.090.32X1.09250914
0.32X1.400.32X1.403001200
0.32X1.570.32X1.573201219
0.32X2.070.32X2.074201500
0.32X2.570.32X2.574501800
0.32X3.070.32X3.074801829


5002000
Other Size is Available
